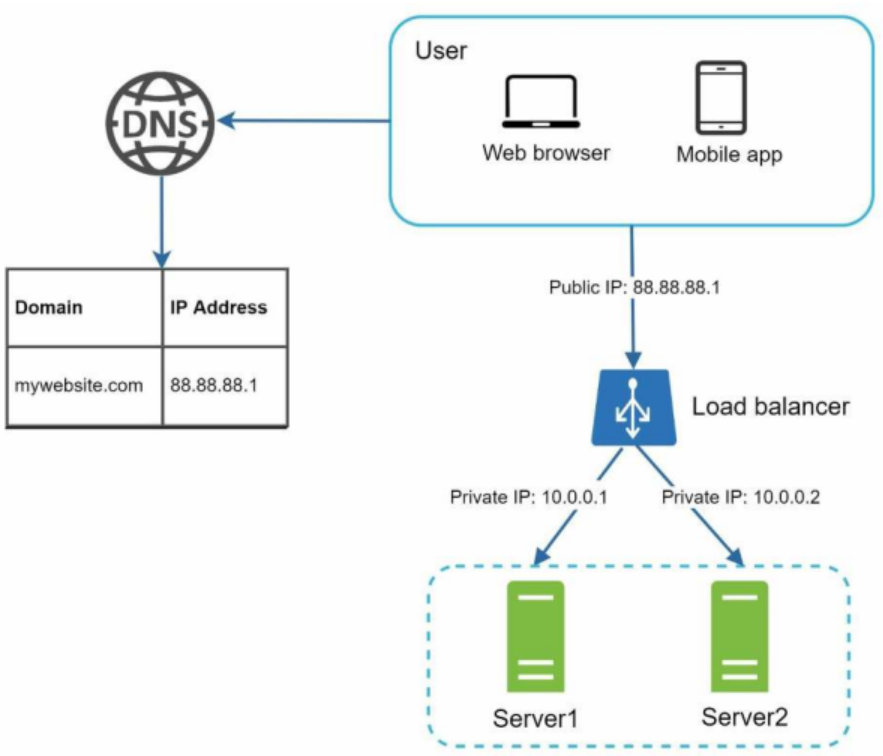

A load balancer evenly distributes incoming traffic among web servers that are defined in a load-balanced set.
Operations
- Users connect to the public IP of the load balancer directly.
- Web servers are unreachable directly by clients anymore.
- For better security, private IPs are used for communication between servers.
- A private IP is an IP address reachable only between servers in the same network; however, it is unreachable over the internet.
- The load balancer communicates with web servers through private IPs.
Fail-over
- If server 1 goes offline
- All the traffic will be routed to server 2.
- This prevents the website from going offline.
- We will also add a new healthy web server to the server pool to balance the load.
- If the website traffic grows rapidly, and two servers are not enough to handle the traffic
- Add more servers to the web server pool.
- Load balancer automatically starts to send requests to them.
]]
